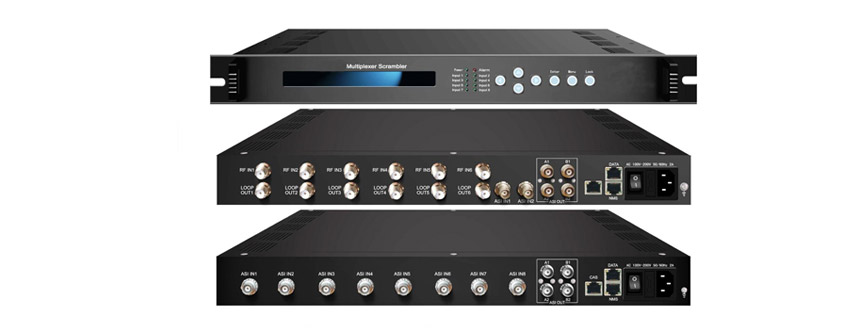

PR-3712 Tuner Input (PR-3712 ASI Input) Mux-scrambler
Outline
PR-3712 Tuner input (PR-3712A ASI input) multiplexer scrambler is the latest multiplexing and scrambling device for digital TV broadcasting head-end system. The mux-scrambler 2 groups of ASI output and 2 corresponding IP output (share one gigabit DATA port, RJ45 interface). In conclusion, its high integration and cost effective design make this device widely used in the Next Generation of CATV Broadcasting system.
Features
- Fully complying with ISO13818 and EN300 468 standard
- Integrated demodulating and multiplexing functions
- Support BISS descrambling
- 2 channels TS input for re-multiplexing
- Support accurate PCR adjusting
- Support PID filtering, re-mapping
- Two groups (each group has 2 channels)separate TS outputs
- Support TS over UDP output as mirror of ASI output (RJ45), GE Port
- Support PSI/SI (PAT and PMT tables) generation and edit--- For 3107&3107A
- Support PSI/SI (PAT and PMT tables) and PSIP (STT, MGT, VCT tables)--- For 3107B
- Support PSI/SI rebuilding and editing
- Huge buffer memory for saving the overflowing code stream
- Supporting to multiplex one program to all outputs
- Network long-distance upgraded
- With high reliability design and stability operation
- LCD/keyboard and net management, support NMS/SNMP
Specifications
Input interface |
Tuner |
6 tuners (DVB-S/ DVB-C / DVB-S2/ISDB-T optional) |
NDS3712 |
ASI |
2 ASI |
||
8ASI |
NDS3712A |
||
Re-multiplex |
2 channels TS re-multiplex |
||
PID re-mapping ( auto/manual optional) |
|||
PCR accurate adjusting |
|||
Automatically generating PSI/SI table |
|||
Input |
Packet format |
204/188 self-adaption |
|
Scrambling |
Simul-crypt CA |
4 |
|
Standard |
ETR289, ETSI 101 197, ETSI 103 197 |
||
Connection |
Local/Remote connect |
||
Output port |
ASI |
2 groups separate outputs (each group has 2 channels) |
|
IP |
TS over UDP output as mirror of ASI output (RJ45) |
||
PID |
Output range |
0x0000—0x1FFF |
|
Amount of output PID per input |
64 |
||
NMS port |
Ethernet port |
10/100M |
|
Miscellaneous |
Demission(LxWxH) |
482mm×410mm×44mm |
|
Weight |
4kg |
||
Temperature |
0~45℃(operation),-20~80℃(storage) |
||
Power supply |
AC 110V±10%,50/60Hz Or AC 220V±10%,50/60Hz |
||
Consumption |
≈18W |
