PR-3232 IP MUX Scrambling QAM Modulator

QAM Modulator MODEL: PR-3232 Download

Product Outline

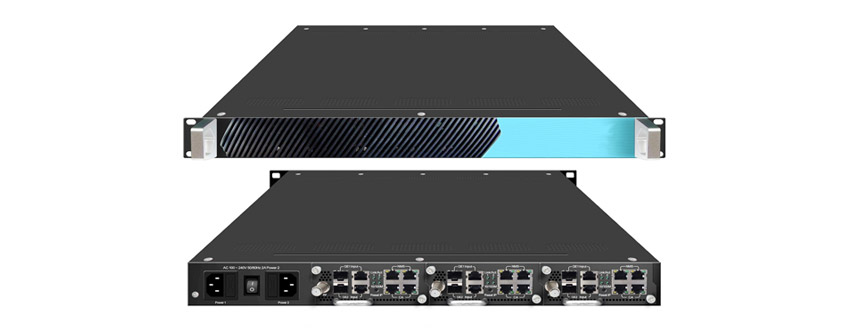

PR-3232 IP Mux-Scrambling QAM modulation module is the latest generation mux-scrambling-modulating all-in-one device. A single module supports maximum 512 IP (MPTS/SPTS) input and 24 carriers output as well as 24 IP output after multiplexing and scrambling process (RF output for local transmission and IP output for remote sub-head end). It adopts the slot structure with one device supporting maximum 3 PR-3232 modules and 72 channels mux-scrambling-modulation. Each module can work standalone. With its powerful performance and low cost, PR-3232 is especially adequate for the new generation CATV system.

Features

  • Compliant to DVB-C (EN 300 429) and ITU-T J.83 A
  • Support DVB general scrambling system (ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197
  • 2 GE input per module, RJ45 interface or SFP
  • Supports up to 512 channels IP input over UDP, RTP (MPTS/SPTS)
  • Supports unicast and multicast, supports IGMP v2v3
  • Max 840Mbps effective bit rate for every GE input
  • Supports re-multiplexing and MPTS/SPTS multiplexing
  • Supports up to 256 PIDs remapping per channel
  • 24 QAM carriers output per module, adjustable frequency output within 768 MHz
  • Support 24 IP (MPTS) output over UDP, RTP/RTSP per module
  • Supports RS (204,188) encoding
  • Excellent RF performance, MER≥40db
  • Support Web-based NMS Management
  • Modular design, 1U chassis support up to 3 modules
  • Redundancy Power Supply

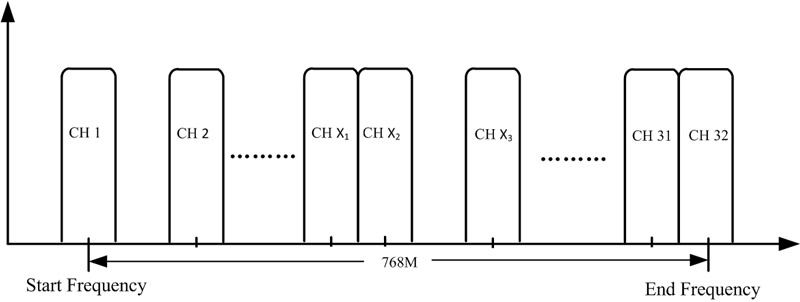

Carrier Setting Illustration




24 QAM carriers output per module, adjustable carrier frequency output within 768 MHz: support non-adjacent frequency setting Bandwidth can be disregarded (regardless of bandwidth)

Inner Principle (of a single module)

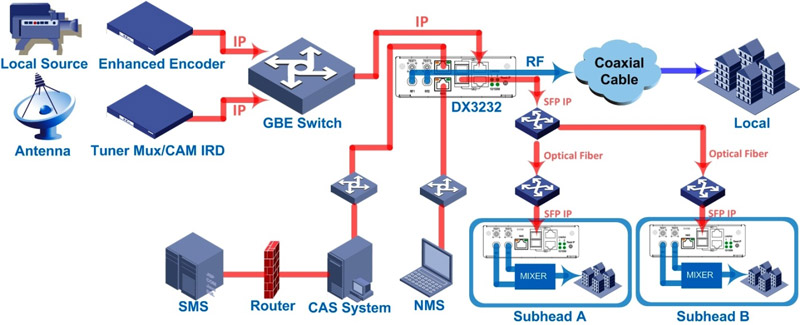

System Connection Sample IP Base

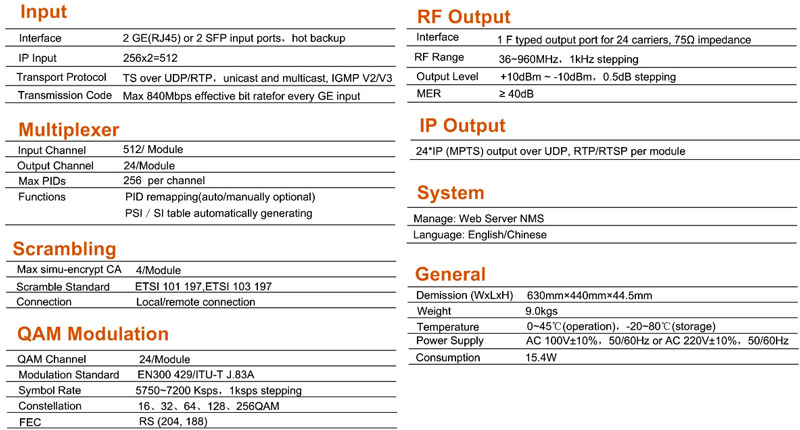

Specification
