Product Overview

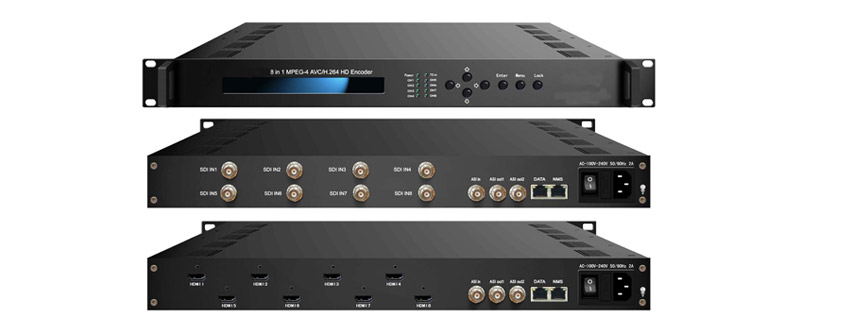

PR-3218A 8-in-1 MPEG-4 AVC/H.264 HD encoder is our newest professional HD audio & video encoding and multiplexing device with powerful functionality. It is equipped with 8 HDMI (or HD-SDI) channels input supporting MPEG-4 AVC/H.264 High Profile code format & main Profile code format, and also 1 ASI input for re-mux. It can multiplex the ASI input TS and the 8 encoded SPTS to generate a MPTS output with the inserted PSI/SI information. In conclusion, its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.
Features
- Support 8 HDMI/HDSDI channels input & 1 ASI Input
- Support H.264/AVC video encoding
- Support Low delay
- Support MPEG1 Layer 2 (HE-AAC (V2), LC -AAC optional) audio encoding
- AC3 pass through optional (for HDMI interface)
- Support audio gain control
- Support PSI/SI editing and inserting
- Support VBR/CBR video bitrate mode
- Support 720P, 1080I, 1080P HD video format* Support ASI output MPTS or 8 SPTS
- Support IP Output MPTS and 8 SPTS
- Support IP null packet filter
- Real-time output bit-rate monitoring
- Update device through NMS port
- Support LCD / keyboard operating, and network management (SNMP/Web)
Specifications
|
Input |
8×HDMI (or SDI) inputs |
|
|
1 ASI input, BNC interface |
||
|
Video |
Resolution |
1920×1080_60P, 1920×1080_50P |
|
1920×1080_60i, 1920×1080_50i |
||
|
1280×720_60P, 1280×720 _50P |
||
|
720×576_50i, 720×480_60i |
||
|
Encoding |
MPEG-4 AVC/H.264 |
|
|
Bit-rate |
0.8Mbps~19Mbps (each channel) |
|
|
Rate Control |
CBR/VBR |
|
|
GOP Structure |
IBBP |
|
|
Advanced Pretreatment |
De-interlacing, Noise Reduction, Sharpening |
|
|
Low delay |
50-500 ms available |
|
|
Audio |
Encoding |
MPEG-1 Layer 2 (HE-AAC V2, LC- AAC Option); AC3 pass-through (for HDMI) |
|
Sampling rate |
48KHz |
|
|
24-bit |
Resolution |
|
|
Bit-rate |
64Kbps~384Kbps each channel |
|
|
Audio Gain |
0-400 |
|
|
Multiplexing |
1 ASI input multiplexed with local 8 channels of TS |
|
|
Stream output |
2*ASI output, BNC interface |
|
|
MPTS and 8 SPTS over UDP/RTP, 1000 Base-T Ethernet interface (unicast / multicast); |
||
|
System function |
LCD/keyboard operating, net manager (SNMP) |
|
|
Chinese-English control interface |
||
|
Ethernet software & hardware upgrade |
||
|
Miscellaneous |
Dimension (W× L× H) |
440mm×410mm×44.5mm |
|
Approx. weight |
4kg |
|
|
Temperature |
0~45℃(work), -20~80℃（Storage） |
|
|
Power |
AC 100V-220V±10%, 50/60Hz |
|
|
Consumption |
25W |
|
Principle Chart
