Optical Splitter
Low insertion loss Wide pass band
High isolation
High stability and reliability
Epoxy free on optical patch

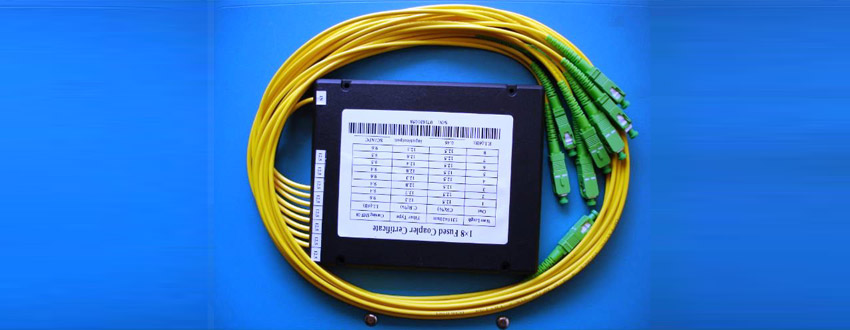

1x8 Single-Window Optical Fiber Splitter
FCST adopts unique bandwidth extension techniques (asymmetric craft) for the tri-windows couplers to change the characteristic of the wavelength and make tri-windows at 1310/1490/1550nm wavelength meet the precision requirements of the coupling ratio. This unit specially applies for the low-cost solution of “ 3 in 1 network” and tri-wavelength bi-direction transmission with a single fiber in FTTx network.Features
- Low PDL
- Low Excess Loss
- Good Directivity
- Good environmental Stability
- Tri-operating windows
Applications
- Optical Fiber Communication Systems
- Optical Fiber CATV
- Passive Optical Network (PON)
- FTTx
Technical Specifications
|
MODEL |
Standard Tri-window Optical Couplers |
|||
|
Central Wavelength/Bandwidth(nm) |
1310±40, 1490±10, 1550±40 |
|||
|
Coupling Ratio (%) |
1~50 |
|||
|
Typical Excess Loss(dB) |
0.15 |
|||
|
Typical Insertion Loss(dB) |
3.6 |
|||
|
PDL(dB) |
0.10 |
|||
|
Directivity(dB) |
55 |
|||
|
Temperature Coefficient(dB/°C) |
0.002 |
|||
|
Operating Temperature(°C) |
-40~+70 |
|||
|
Storage Temperature(°C) |
-40~+85 |
|||
|
Max Operating Power(mw) |
300 |
|||
|
Max Tensile Strength(N) |
5 |
|||
|
Max Insertion Loss(dB) |
1*4 |
1*8 |
1*16 |
1*32 |
|
7.0 |
10 |
13.5 |
17.0 |
|
|
Insertion Loss Uniformity(dB) |
1*4 |
1*8 |
1*16 |
1*32 |
|
1.6 |
1.8 |
2.4 |
3.0 |
|
|
Industry Standard |
Telcordia GR-1221-CORE |
|||
