1. Features: Laser Diode
- Adopt Fabry Perot (Multi-Quatum-Well) Structure

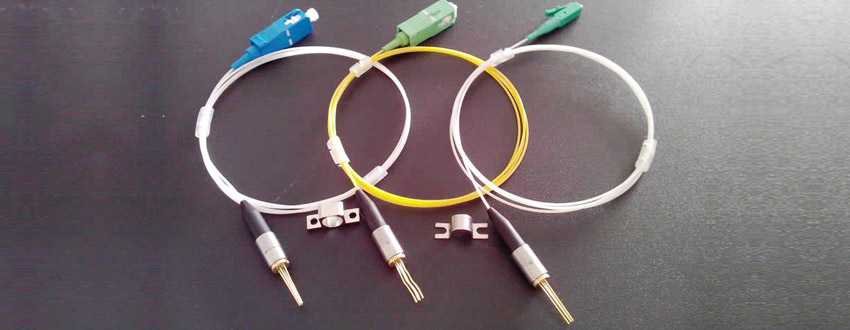

- DFB or FP Coaxial Package
- Built-in InGaAs monitor
- High Reliability, Long operation life
- Laser welding fixed
- Various connector Type
- Various output power (0.5mw-5mw)
2. Applications: Laser Diode
- Coaxial Triplex-directional laser module
- Optical Transmitter of Data Signal
- Optical Transmitter of Analog Signal
- Optical Bid Module and Optical Receiver
- Test Equipment
- Transceiver Module
- Telecommunication
3. Absolute Maximum Ratings (T=25°C) Laser Diode
|
Parameter |
Symbol |
Ratings |
Unit |
|
LD Operating Current |
If(LD) |
Ith+20 |
mA |
|
LD Reverse Voltage |
Vr(LD) |
2.0 |
v |
|
PD Operating Current |
If(PD) |
2 |
mA |
|
PD Reverse Voltage |
Vr(PD) |
15 |
V |
|
Operating temperature |
Topr |
-40~+85 |
°C |
|
Storage temperature |
Tstg |
-40~+85 |
°C |
|
Welding temperature |
Tsld |
260/10 |
°C/S
|

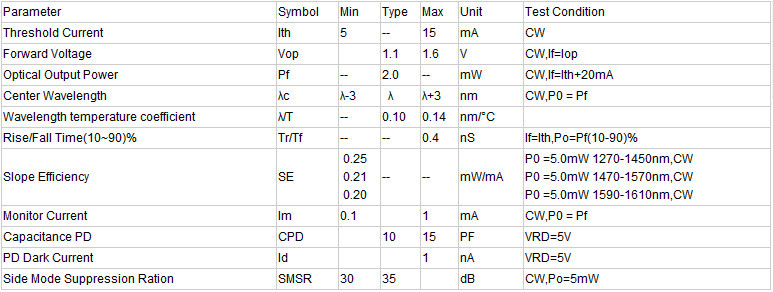

4. Optical and Electrical Characteristics (T=25°C) Laser Diode

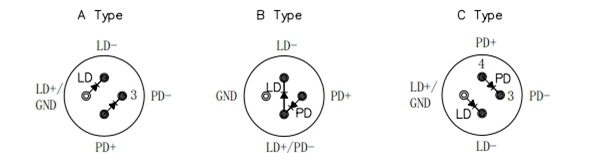

5. Pin assignment
