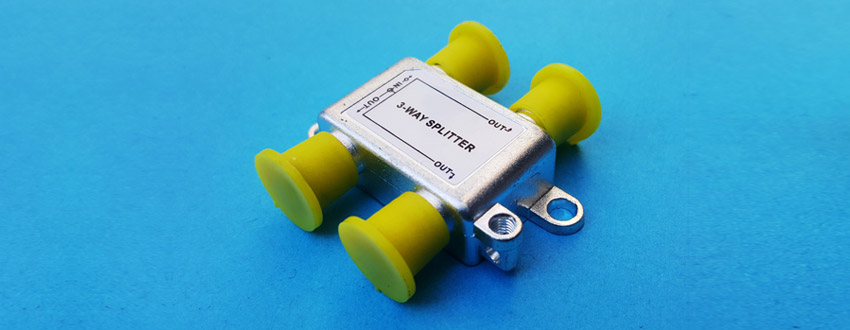

3-Way Splitter

Features

  • Broadband 5~1000 MHz frequency range.
  • True Spec High-performance printed board circuitry provides improved hum modulation and intermodulation parameters to
          ensure superior signal quality.
  • Yellow-chromate plated zinc-alloy die-cast housing ensures excellent ground bonding and long corrosion-free service life
          in indoor/outdoor applications.
  • Epoxy-sealed back cover provides effective EMI-RFI shielding >-70 dB, eliminating signal ingress to provide distortion-free
          pictures.
  • 1-inch centered 3/8˝ long precision machined F-connector threads ensure improved port-to-connector interface and
          accommodate external security devices.
  • High retention internal seizing pins provide improved connectivity to connector center lead

True Spec manufactured to high performance standard, TrueSpec's DSU-series 1GHz professional-grade MATV splitters provide excellent performance at low costs, rivaling competitors' equivalent models. Applications range from residential to MDU installations in international and domestic cable distribution systems. Our advanced printed board circuitry includes special ferrite core material guaranteeing minimal insertion loss, optimal isolation and return loss to 1GHz ensuring high-quality signal transfer. DSU series F-port threads are precision machined, ensuring easy connector installation and removal, and improved port-to-connector interface. The zinc-alloy cast case and epoxy sealed back plate provide superior RFI shielding (-70dB) and a full environmental seal. Each DSU splitter is individually tested at the factory to comply with precise quality standards.

Specifications


Insertion Loss (In-Out)

3.5dB Typical

Return Loss (Output)

27dB Typical

Isolation (Out-Out)

34dB Typical


Related Models



   Splitter Item



 Unit

Specification and Parameter

2-Way

Splitter

PR-FP024

3-Way

Splitter

PR-FP306

4-Way

Splitter

PR-FP408

6-Way

Splitter

PR-FP06H

8-Way

Splitter

PR-FP08H

10-Way

Splitter

PR-FP10H

12-Way

Splitter

PR-FP12H

16-Way

Splitter

PR-FP16H

Splitting Loss

5---65MHz

65---550MHz

550---750MHz

750---1000MHz





dB

(≤)

4.0

6.0

7.8

8.8

10.5

12.5

12.5

14.5

3.7

5.8

7.5

9.0

10.5

12.5

12.5

14.5

3.8

6.3

7.8

9.8

11.2

13.0

13.0

15.0

4.2

6.7

8.2

10.5

12.0

13.0

13.0

16.0

Mutual Isolation

5---65MHz

65---550MHz

550---750MHz

750---1000MHz





dB

(≥)

25

27

25

24

25

25

25

23

Return Loss

5---65MHz

65---550MHz

550---750MHz

750---1000MHz





dB

(≥)

16

16

16

14

Screen Loss

dB

≥100
