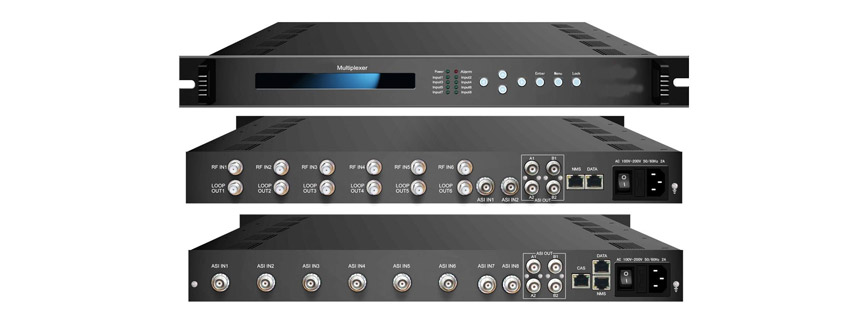

PR-3107X series Multiplexer
Product Outline
PR-3107X series multiplexer is an enhanced TS re-multiplexer for digital TV broadcasting head-end system. The multiplexer has all the functions of normal TS multiplexer, including programs multiplexing, PID re-mapping, service filtering etc. Also the multiplexer can insert EPG (Electronic Program Guide), CA (Conditional Access) and data casting information into each output stream. BISS function embedded will carefully descramble your tuner input programs. This multiplexer has 2 separate ASI output ports and one GE port for two separate gigabit IP outputs. Therein, the bit rate of output stream can be up to 216Mbps.
Features
- Fully complying with ISO13818 and EN300 468 standard
- Integrated demodulating and multiplexing functions
- Support BISS descrambling
- 2 channels TS input for re-multiplexing
- Support accurate PCR adjusting
- Support PID filtering, re-mapping
- Two groups (each group has 2 channels)separate TS outputs
- Support TS over UDP output as mirror of ASI output (RJ45), GE Port
- Support PSI/SI (PAT and PMT tables) generation and edit--- For 3107&3107A
- Support PSI/SI (PAT and PMT tables) and PSIP (STT, MGT, VCT tables)--- For 3107B
- Support PSI/SI rebuilding and editing
- Huge buffer memory for saving the overflowing code stream
- Supporting to multiplex one program to all outputs
- Network long-distance upgraded
- With high reliability design and stability operation
- LCD/keyboard and net management, support NMS/SNMP
Specifications
|
Input interface |
2 ASI+6 tuners(DVB-C/DVB-S/DVB-S2/DVB-T/DVB-T2/ISDB/ATSC) |
NDS3107 DVB Multiplexer |
|
|
8 ASI (DVB) |
NDS3107A DVB Multiplexer |
||
|
2 ASI+6 tuner(DVB-C/DVB-S/DVB-S2/DVB-T/DVB-T2/ISDB/ATSC) |
NDS3107B ATSC Multiplexer |
||
|
8 ASI (ATSC) |
|||
|
Re-multiplex |
2 channels TS re-multiplex |
||
|
PID re-mapping (auto/manual optional) |
|||
|
PCR accurate adjusting |
|||
|
PSI/SI (PAT, PMT) tables auto generation and edition (For 3107&3107A series); PSI/SI (PAT, PMT) and PSIP (STT, MGT, VCT) tables auto generation and edition (For 3107B series) |
|||
|
Input |
Packet format |
204/188 self-adaption |
|
|
Output port |
ASI |
2 groups separate outputs (each group has 2 channels) |
|
|
IP |
TS over UDP output as mirror of ASI output(RJ45), GE Port |
||
|
PID |
Output range |
0x0000—0x1FFF |
|
|
PID transparent |
Any PID transparent and mapping achievable |
||
|
Amount of output PID per input |
64 |
||
|
NMS port |
Ethernet port |
10/100M |
|
|
General |
Demission(WxLxH) |
482mm×410mm×44mm |
|
|
Weight |
6kg |
||
|
Temperature |
0~45℃(operation), -20~80℃(storage) |
||
|
Power supply |
AC 110V±10%, 50/60Hz Or AC 220V±10%, 50/60Hz |
||
|
Consumption |
18W |
||
System Structure Chart

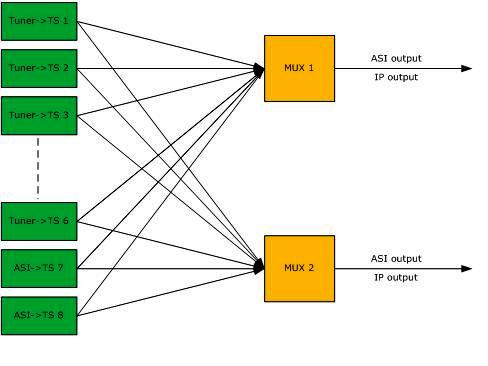

Tuner Input Multiplexer

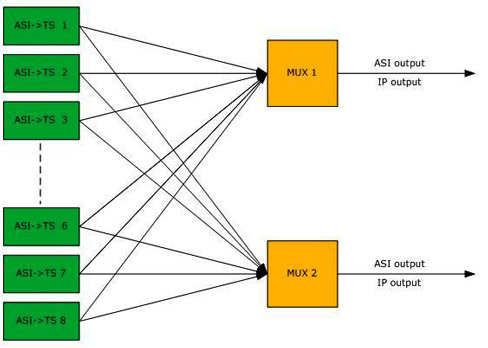

ASI Input Multiplexer
Purchase information
|
DVB standard Multiplexer |
|
|
NDS3107 |
2ASI+6 tuner input (DVB-C/DVB-S/DVB-S2/DVB-T/DVB-T2/ISDB/ATSC) |
|
NDS3107A |
8 ASI Input |
|
|
|
|
ATSC standard Multiplexer |
|
|
NDS3107B |
2ASI+6 tuner input (DVB-C/DVB-S/DVB-S2/DVB-T/DVB-T2/ISDB/ATSC) |
|
8 ASI Input |
|
